FPV build

One quad, two links

The Boxer flies it. The goggles only watch. Select a part and it lights where it sits.

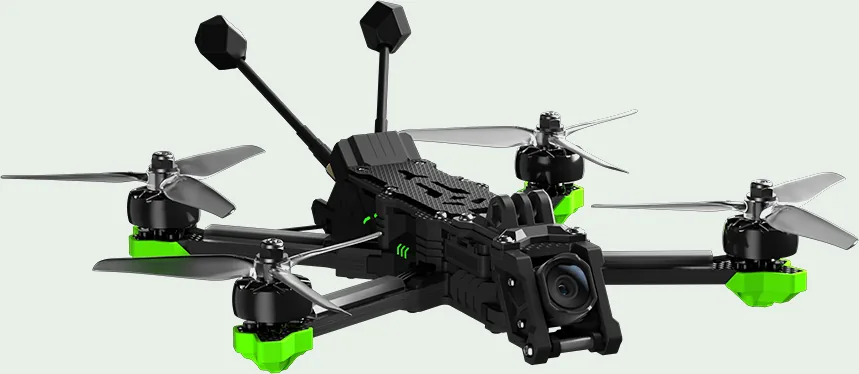

Nazgul Evoque F5 V3, lens at the front

Camera, pulled apart

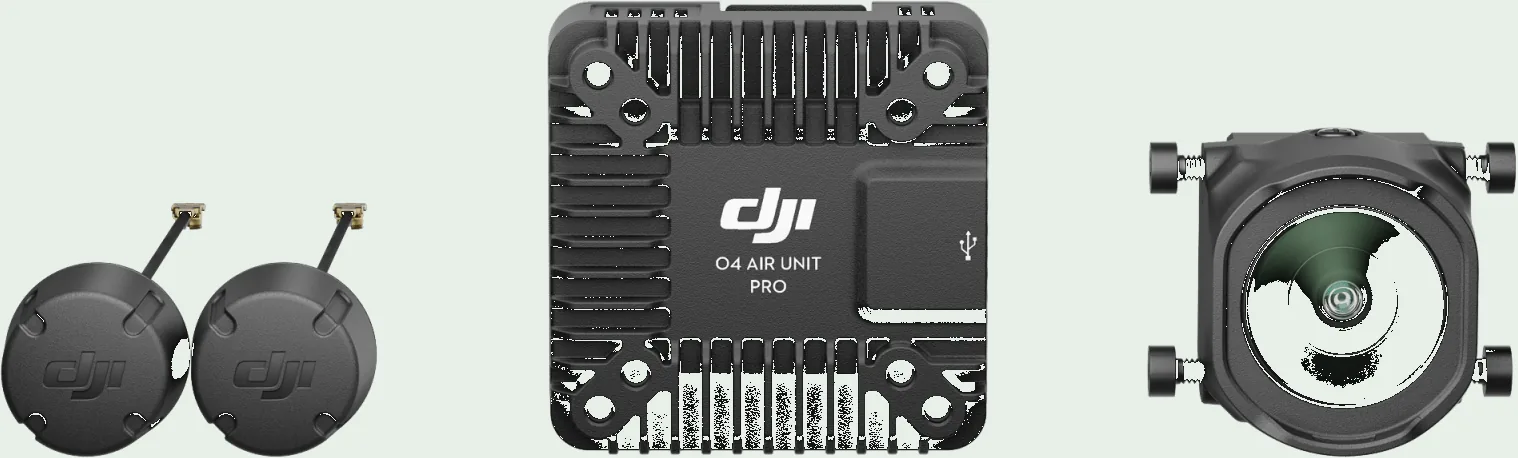

DJI O4 Air Unit Pro: antennas, air unit, and camera

Beside the quad

On the quad

O4 Pro, Borg Mini F7, 60A ESC, XING2 2207 1750KV. Select GPS and the ELRS 2.4 receiver. Leave the DJI controller and the 868/915 receiver.

GetFPV

DJI O4 Air Unit Pro, 1/1.3-inch, 155°. It ships on the quad.

The transmitter half of the O4 Pro. Dual antennas leave the back of the frame.

Video antennas. The control antenna is the little ELRS aerial on the receiver.

iFlight O4 Air Unit Pro set. DJI’s own O4 filters do not fit this mount.

iFlight

128 GB, V30. Kingston Canvas Go! Plus or Lexar Professional 1066x.

Buy four extra pairs of the Nazgul F5. They are the first thing a landing breaks.

On the quad. The green guards in the picture are the arm ends.

Switchable DeadCat / true X. It ships as DeadCat.

Flight controller and the four-in-one ESC. Both ship installed.

iFlight ELRS 2.4. It does not bind to a DJI remote, Crossfire, or an 868/915 receiver.

M10. Take the listing that says GPS pre-installed.

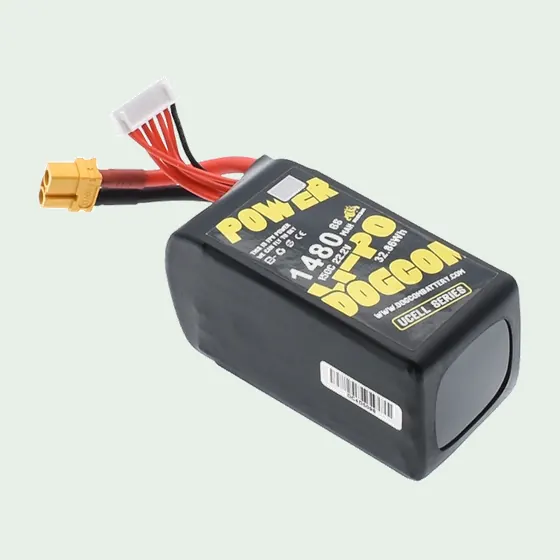

Four packs, 1480 mAh, XT60, 150C class. About four to six minutes of freestyle each.

GetFPV

Around it

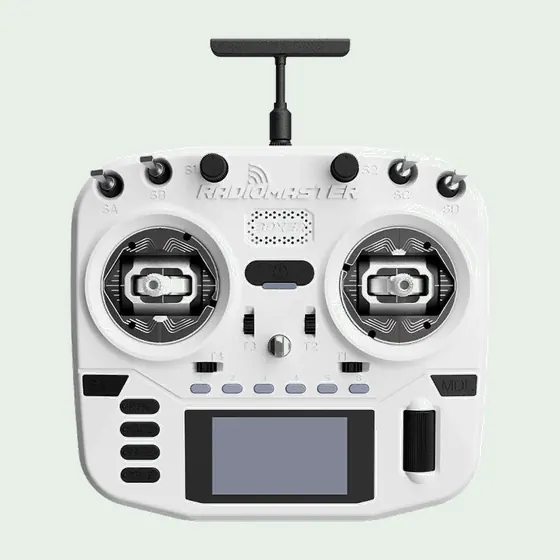

RadioMaster, internal ELRS 2.4, Mode 2. US stock runs FCC power.The EU listing is LBT firmware, capped at 100 mW.

GetFPV

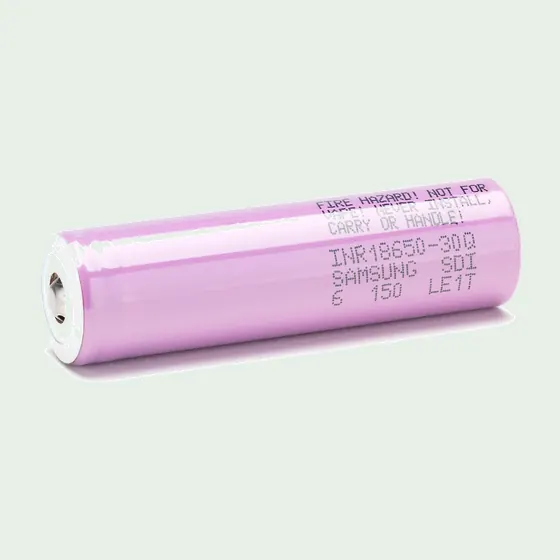

Two button-top cells, about 3000 mAh. Not in the radio box.

IMR

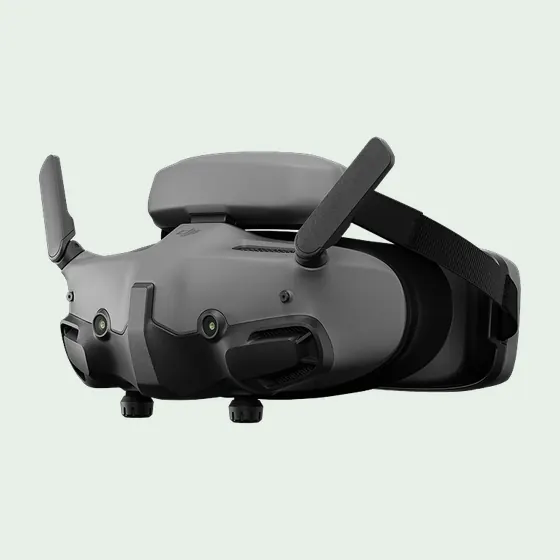

DJI Goggles 3. Buy them in the same country as the quad so the air unit and the goggles share a power table.

GetFPV

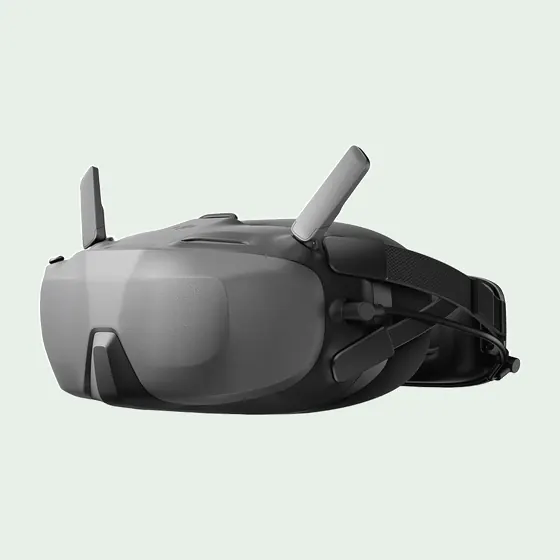

The less expensive O4 goggle, if the Goggles 3 picture is more than you need.

GetFPV

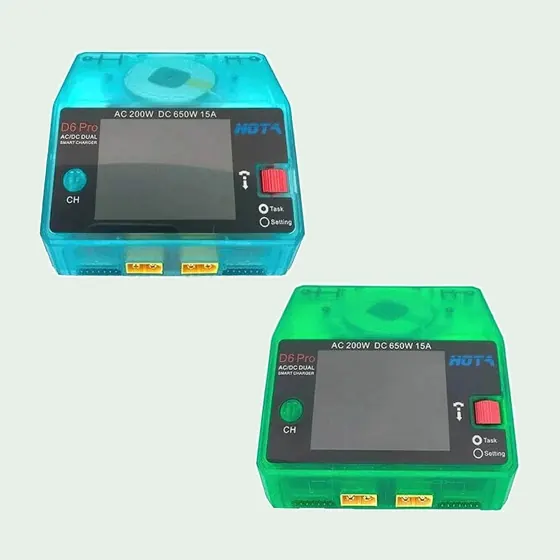

Dual channel, so two 6S packs at once. Take the EU mains plug.Take the US mains plug.

RaceDayQuads

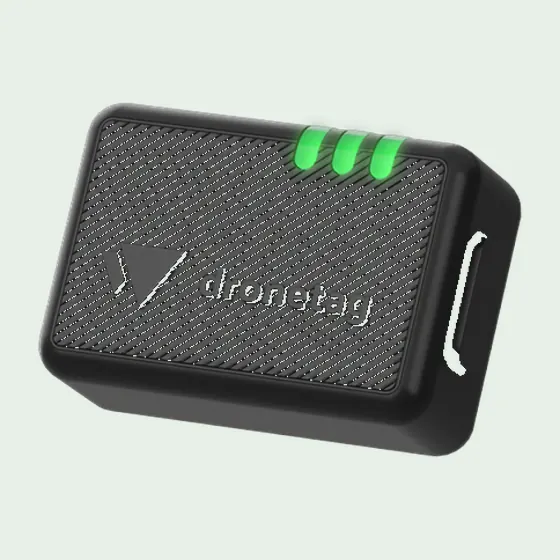

Dronetag Beacon. The EU C4 quad does not take a direct remote-ID module.

Dronetag

Liftoff, or Velocidrone. The radio is a joystick.

Steam
